CAN 16输入/输出 CAN模块 P319

CAN 16输入/输出 CAN模块 P319

编号： P319
产品详情

产品说明：

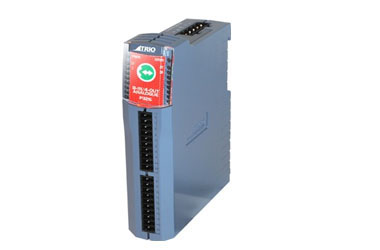

The Trio CAN16 Input/Output module offers a compact DIN rail mounted I/O expansion capability for all Trio Motion Coordinators. Up to 16 modules may be connected to the CAN network which may be up to 100m long.

Inputs16 x 24 Volt Input channels with 2500V isolation
Outputs16x 24 Volt sourcing (PNP) output channels
Configuration2 x 8 bi-directional input/output channels
ProtectionOutputs are overcurrent and over temperature rated
IndicatorsIndividual status LED's
Address SettingVia DIP switches
Power Supply24V / 1.5W
MountingDIN rail mount
Size26mm wide x 85mm deep x 130 mm high

dimensions

Weight168g
CAN500kHz, Up to 256 expansion output channels
EMCEN61000-6-2 (2005) Industrial Noise Immunity/ EN61000-6-4 (2007) Industrial Noise Emissions.
CAN protocolTrio CANI/O or CANopen DS401
RoHsCompliant
